MJ2-1280 Series Enclosed Limit Switches MJ2-1300 Series Enclosed Limit Switches MJ2-1305 Series Enclosed Limit Switches MJ2-1306 Series Enclosed Limit Switches MJ2-1306-P Series Enclosed Limit Switches MJ2-1307 Series Enclosed Limit Switches MJ2-1307-P Series Enclosed Limit Switches MJ2-1308 Series Enclosed Limit Switches MJ2-1308-P Series Enclosed Limit Switches MJ2-1308-R Series Enclosed Limit Switches MJ2-1308R-P Series Enclosed Limit Switches MJ2-1315 Series Enclosed Limit Switches MJ2-1317 Series Enclosed Limit Switches MJ2-1513 Series Enclosed Limit Switches MJ2-1514 Series Enclosed Limit Switches MJ2-1515-P Series Enclosed Limit Switches MJ2-1515 Series Enclosed Limit Switches MJ2-1543 Series Enclosed Limit Switches MJ2-1554 Series Enclosed Limit Switches MJ2-1578 Series Enclosed Limit Switches MJ2-1701 Series Enclosed Limit Switches MJ2-1702 Series Enclosed Limit Switches MJ2-1703 Series Enclosed Limit Switches MJ2-1703-F Series Enclosed Limit Switches MJ2-1704-F Series Enclosed Limit Switches MJ2-1704 Series Enclosed Limit Switches MJ2-1711 Series Enclosed Limit Switches MJ2-1712 Series Enclosed Limit Switches MJ2-1713 Series Enclosed Limit Switches MJ2-1714 Series Enclosed Limit Switches MJ2-1730 Series Enclosed Limit Switches MJ2-1732 Series Enclosed Limit Switches MJ2-1737 Series Enclosed Limit Switches MJ2-CB2 Series Enclosed Limit Switches Fast Terminal Series Enclosed Limit Switches Soldering Terminal Series Enclosed Limit Switches	MJ2-1280      MJ2-1300     MJ2-1305           MJ2-1306-P     MJ2-1306     MJ2-1307-P           MJ2-1307     MJ2-1308-P     MJ2-1308-R           MJ2-1308     MJ2-1308R-P     MJ2-1315             MJ2-1317     MJ2-1513     MJ2-1514           MJ2-1515-P     MJ2-1515     MJ2-1543        MJ2-1554      MJ2-1578      MJ2-1701           MJ2-1702       MJ2-1703-F     MJ2-1703           MJ2-1704-F     MJ2-1704       MJ2-1711           MJ2-1712     MJ2-1713    MJ2-1714          MJ2-1730     MJ2-1732     MJ2-1737               MJ2-CB2     Fast 、Soldering Terminal
Products Features
→Regular or sealed operating heads. →Momentary contacts. →Completely sealed constructure. →Wide choice of heads and actuators. →Plastic (Standard) or phenolic housing. →Regular or light operating force. →Temperature range +5 to +175 (-15 to +80). →Soldering Terminal or Fast Terminal

Specifications
Ratings	→15A at 125 or 250V →1/8HP at 125V AC →1/4HP at 250V AC →1/2A at 125V DC →1/4A at 250V DC
Operating speed	0.01mm to 1m/sec
Operating frequency	→Mechanically: 240 operations/min. →Electrically: 20 operations/min.
Contact resistance	15m W min. (at 500 VDC)
Insulation resistance	100M W min. (at 500 VDC)
Dielectric strength	→1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals →2,000 VAC, 50/60 Hz for 1 minute between current-carry part and    ground
Vibration	Malfunction durability: 10 to 55Hz 1.5mm double amplitude
Shock	→Mechanical durability: Approx 1,000m/sec (approx 100G's) →Malfunction durability: Approx. 300m/sec (approx 30G's)
Ambient operating temp	→General purpose type: -10º to +80º C →Sealed type: -15º to 80º C
Humidity	→General purpose type: 85% RH max →Sealed type: 95% RH
Service life	→Mechanically: 20,000,000 operations min →Electrically: 500,000 operations min.

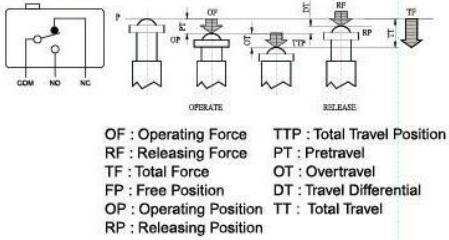

Circuitry
